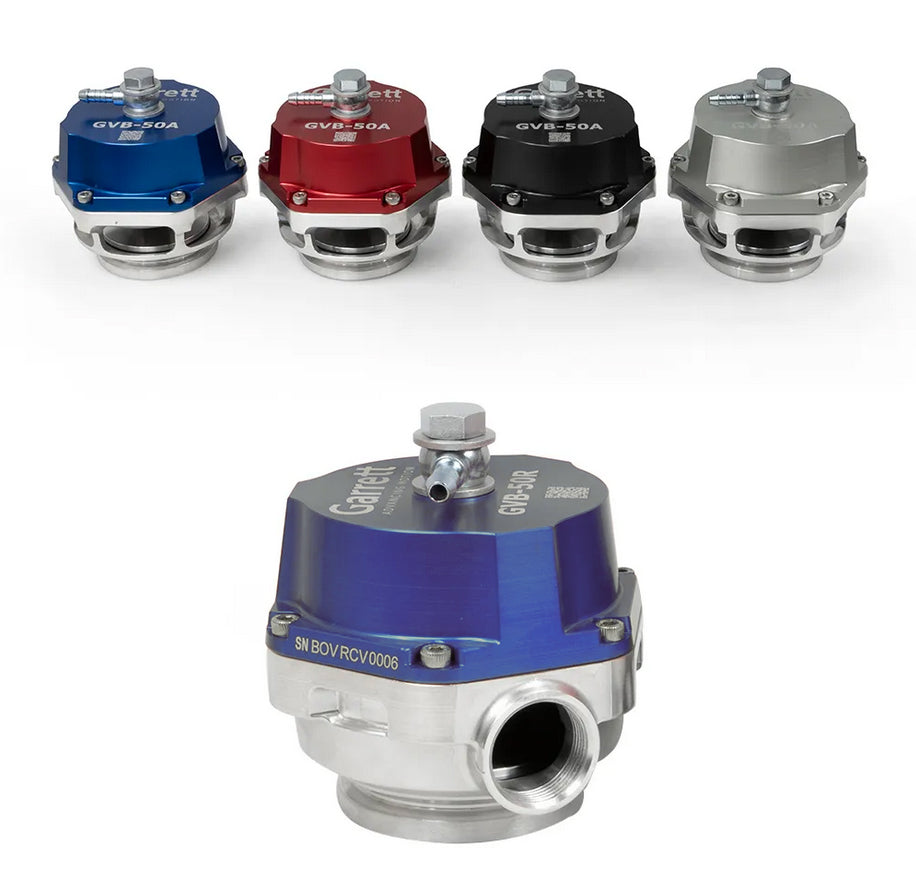

Garrett GVB-50R 50mm RCV Blow Off Valve BOV - Blue

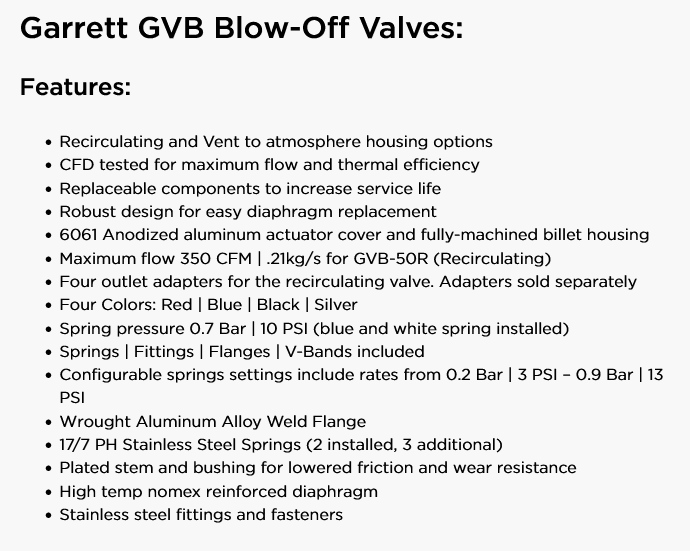

Key Features

• CFD tested for maximum flow and thermal efficiency
• Replaceable components to increase service life
• Robust design for easy diaphragm replacement
• 6061 Anodized aluminum actuator cover and fully-machined billet housing
• Maximum flow 350 CFM | .21kg/s for GVB-50R
• Four outlet adapters for the recirculating valve. Adapters sold separately
• Base pressure 0.7 Bar | 10 PSI (blue and white spring installed)
• Configurable springs settings include: 3 | 4 | 6 | 7 | 9 | 10 | 12 | 13 PSI
• Wrought Aluminum Alloy Weld Flange
• 17/7 PH Stainless Steel Springs
• Plated stem and bushing for lowered friction and wear resistance
• High temp nomex reinforced diaphragm
• Stainless steel fittings and fasteners
• BOV flange dimensions interchangeable with Tial Q and QR

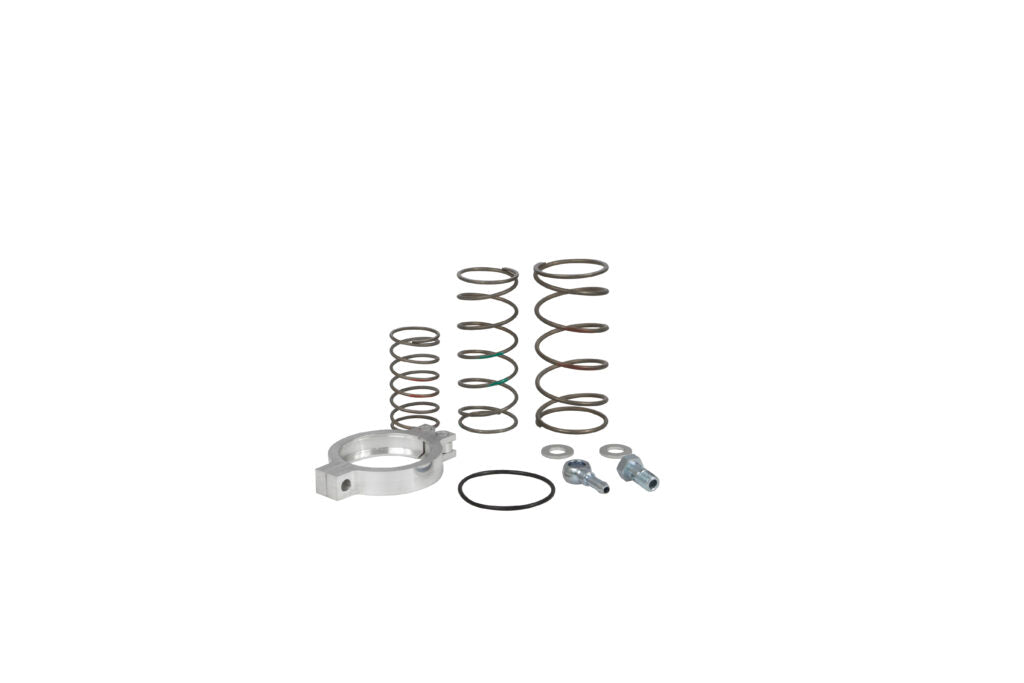

• Every kit contains- all fasteners, springs, fittings, V-bands, clamps, and flanges.
