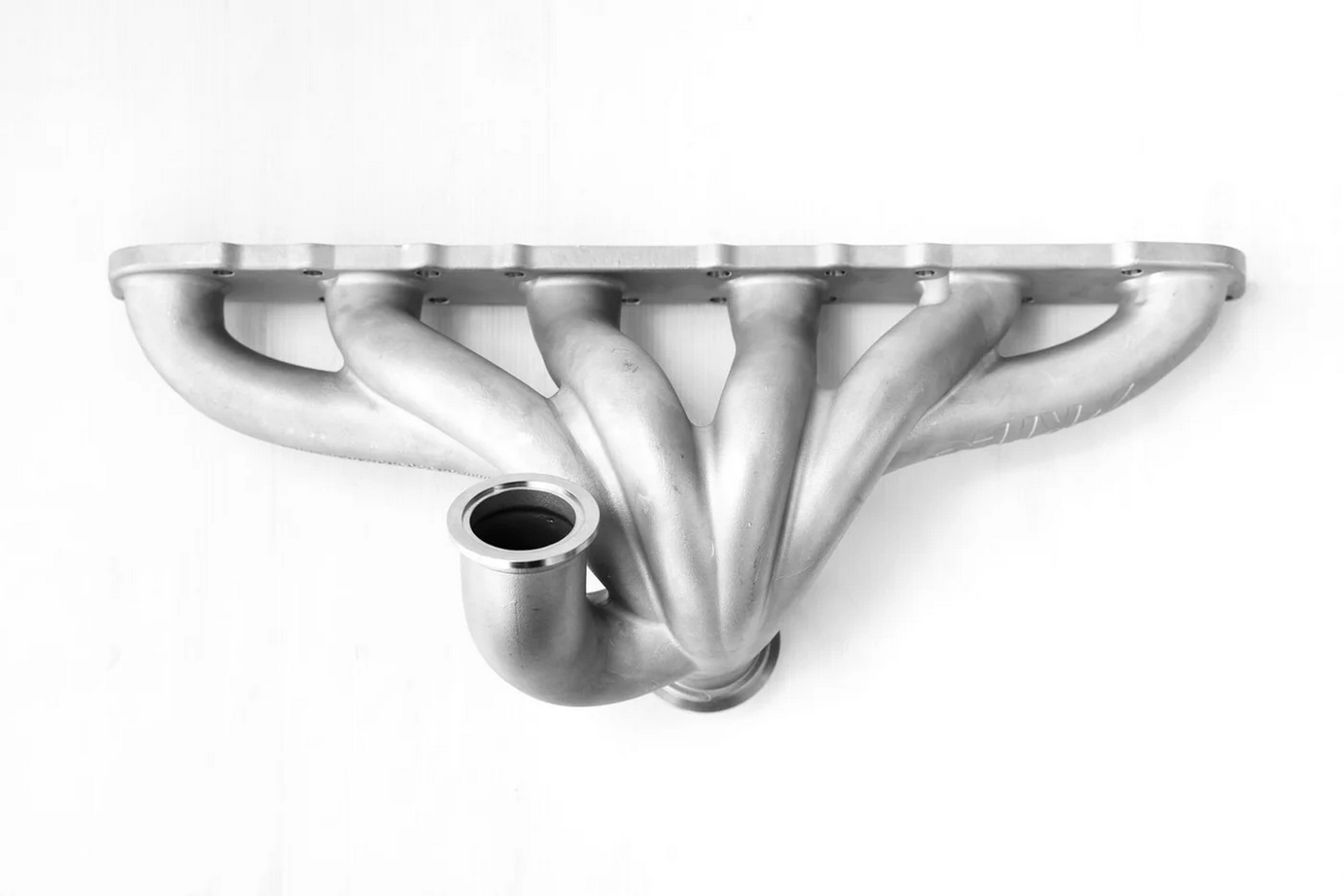

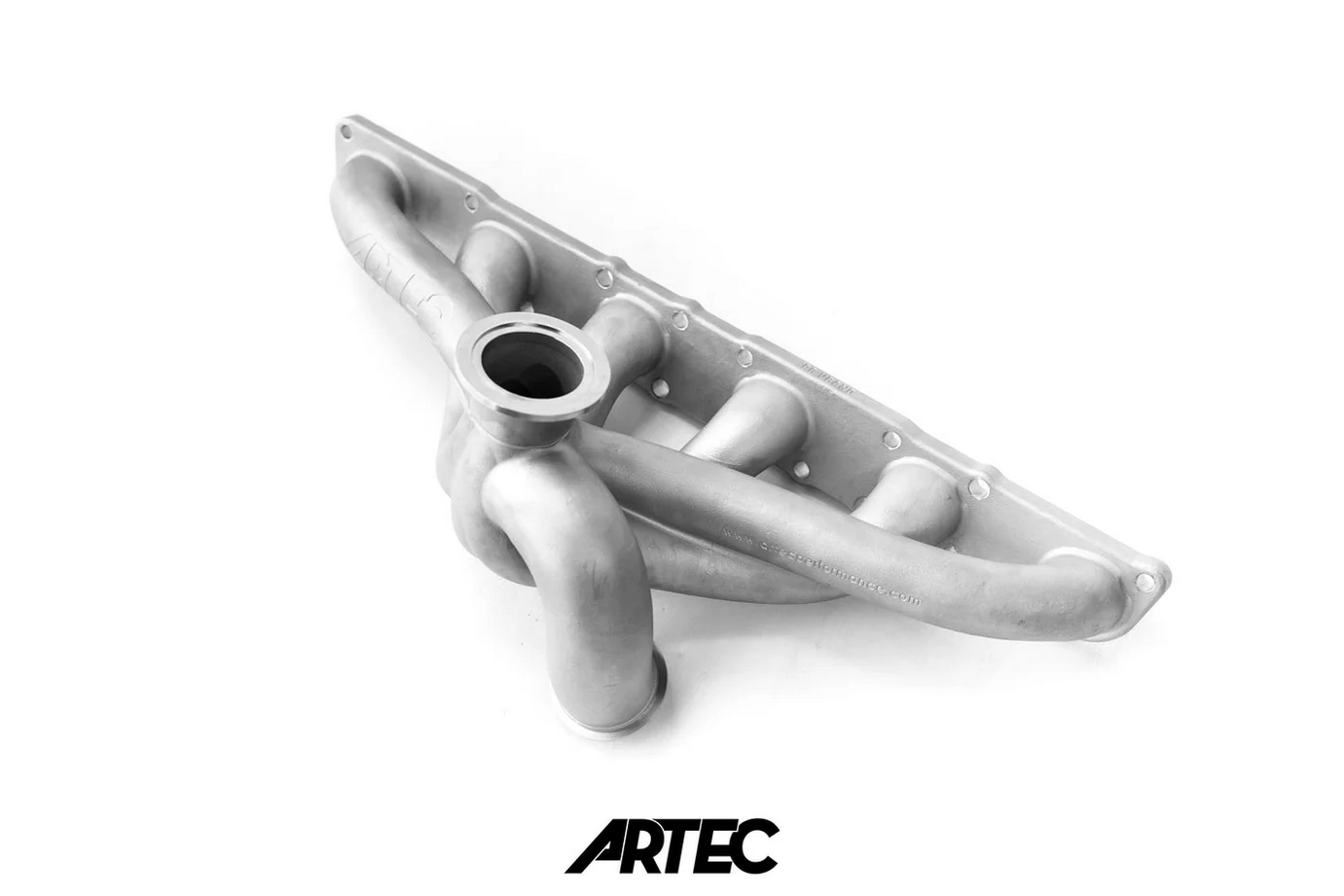

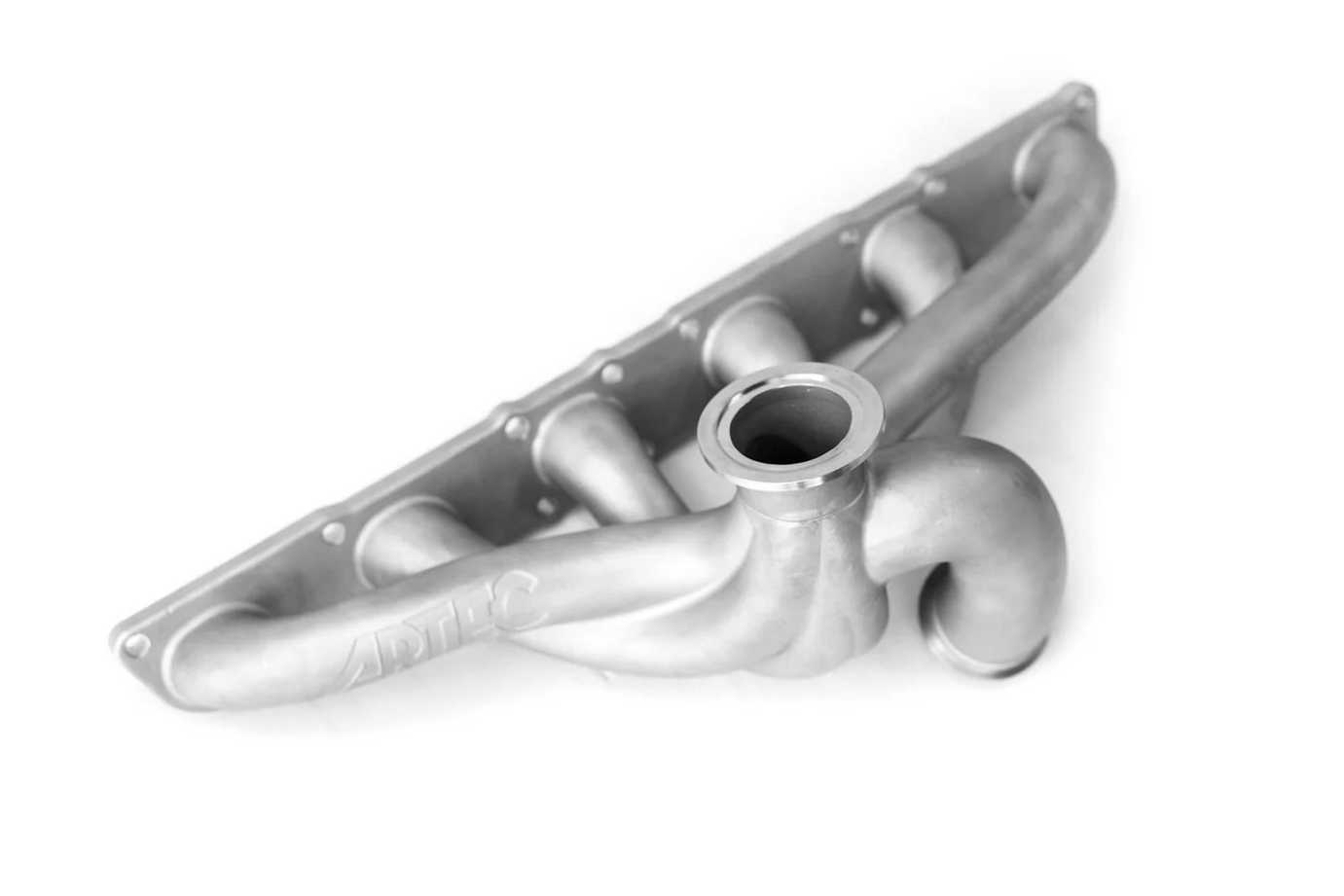

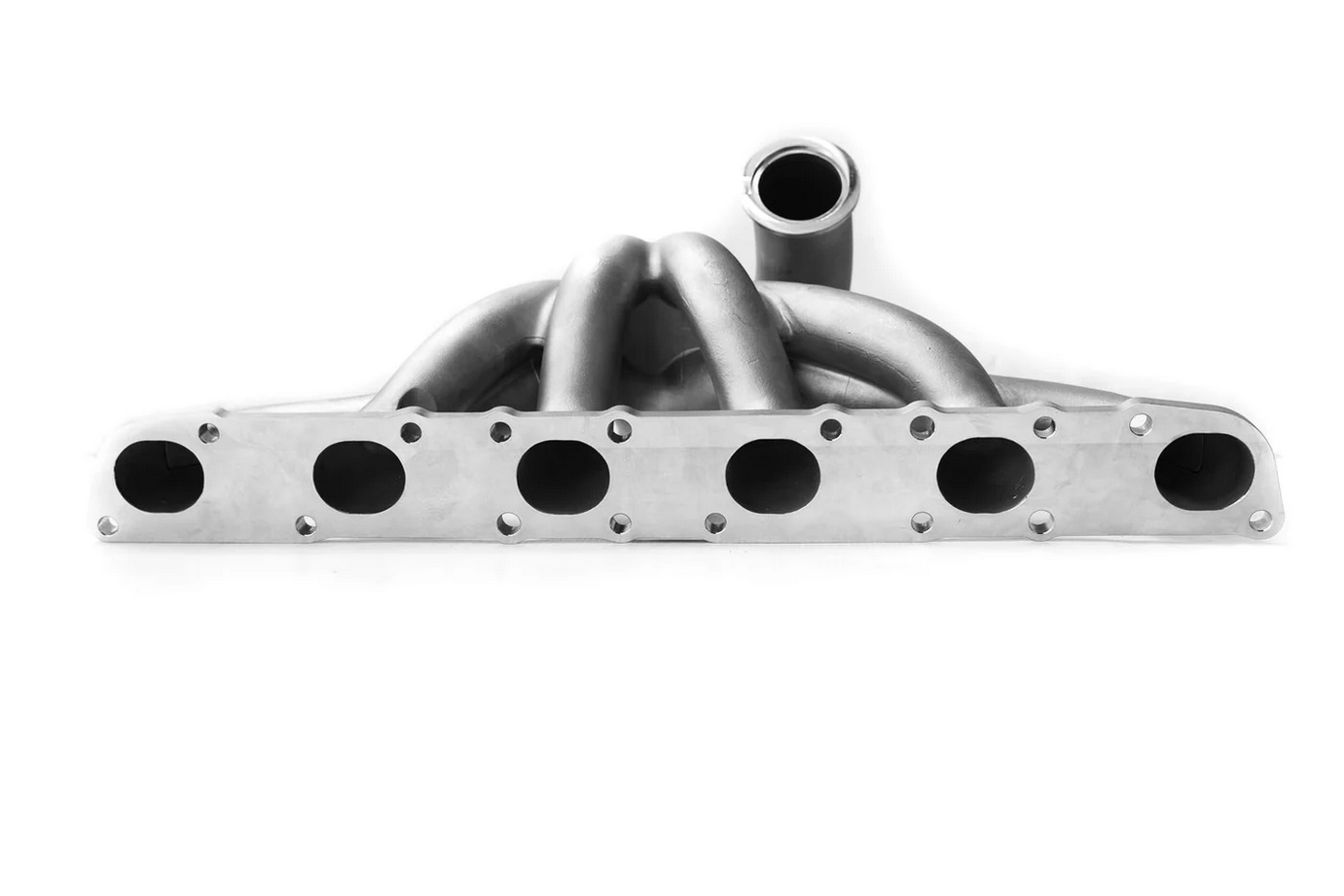

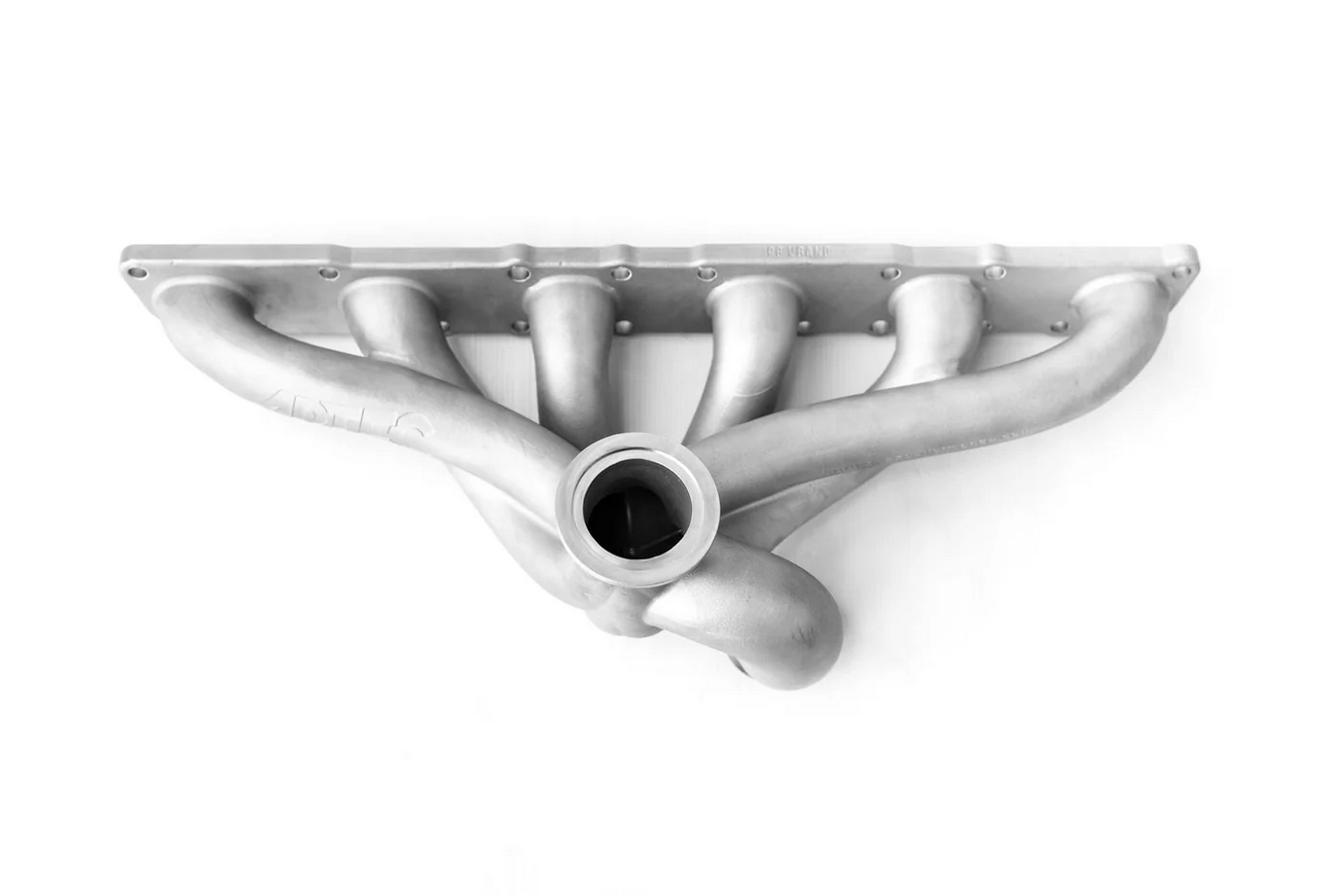

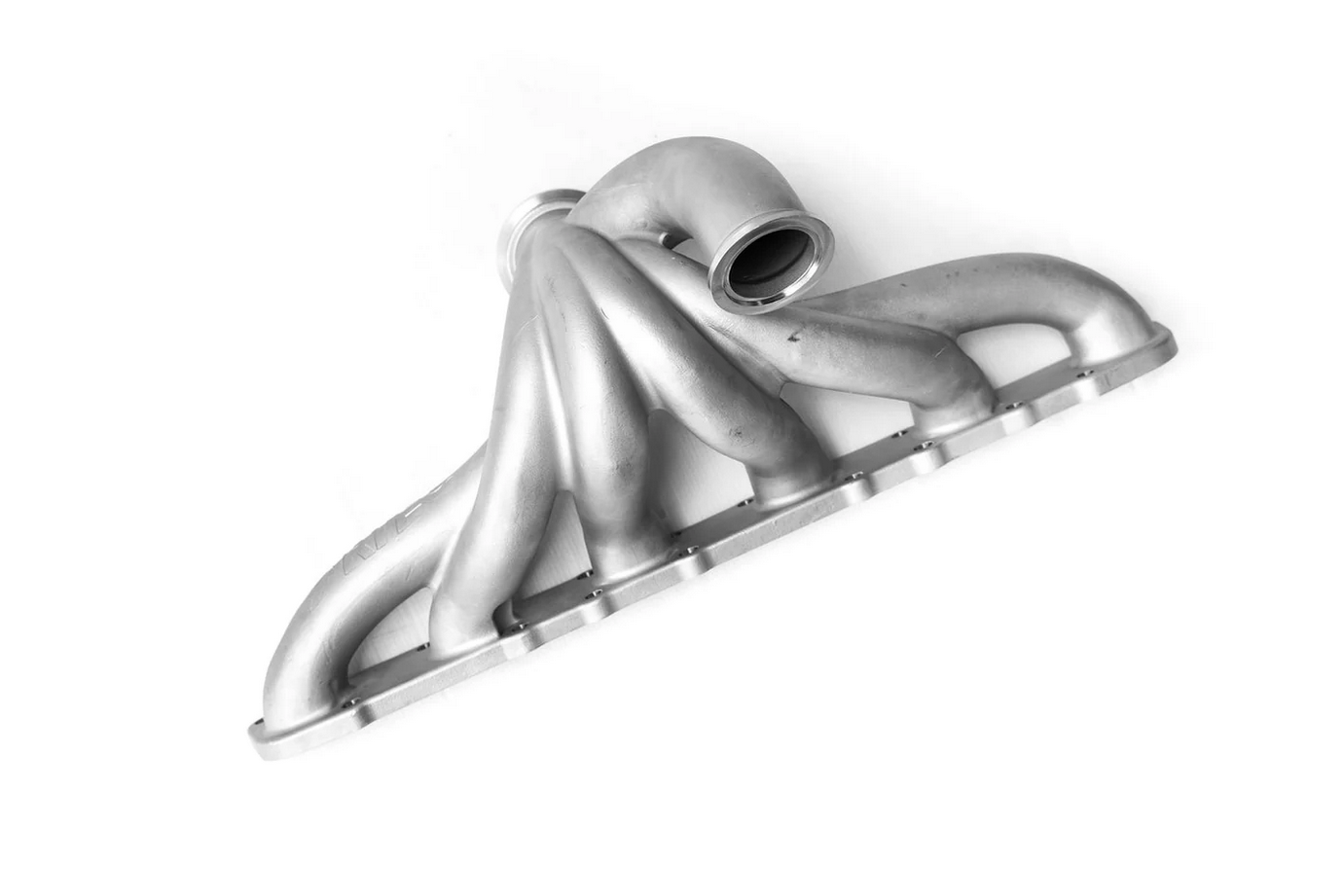

Artec Nissan RB26 RB25 RB20 V-Band (Reverse Rotation) Turbo Exhaust Manifold

• SUS347 stainless steel cast exhaust manifold
• Rated for 400-800 wheel horsepower

Engine Compatibility

• All Nissan RB20
• All Nissan RB25
• All Nissan RB26
• NOTE: RB30 bottom end can be used with any of the engines above with no clearance issues



Chassis Compatibility

• Designed to fit standard Nissan Skyline R32 / R33 / R34 chassis
• Confirmed fitment:
  • Nissan 350Z (Z33)
  • Nissan 370Z (Z34)
  • Nissan S13
  • Nissan S14
  • Nissan S15

• REQUIRES REVERSE ROTATION TURBOCHARGER
• Features a 50-55mm turbo V-band flange and supports the following turbochargers by using the appropriate locating rings:

Wastegate Compatibility

• Features a single 44mm / 45mm / 46mm wastegate flange
• Installation of a 50mm wastegate is possible by cutting and welding a new flange

Package Contents:

• 1x Nissan RB V-Band Reverse Rotation Exhaust Manifold
• 1x ARTEC V-Band Locating Ring for Garrett / Turbosmart
• 1x ARTEC V-Band Locating Ring for Precision Turbo
• 1x ARTEC V-Band Locating Ring for TiAL / Xona
