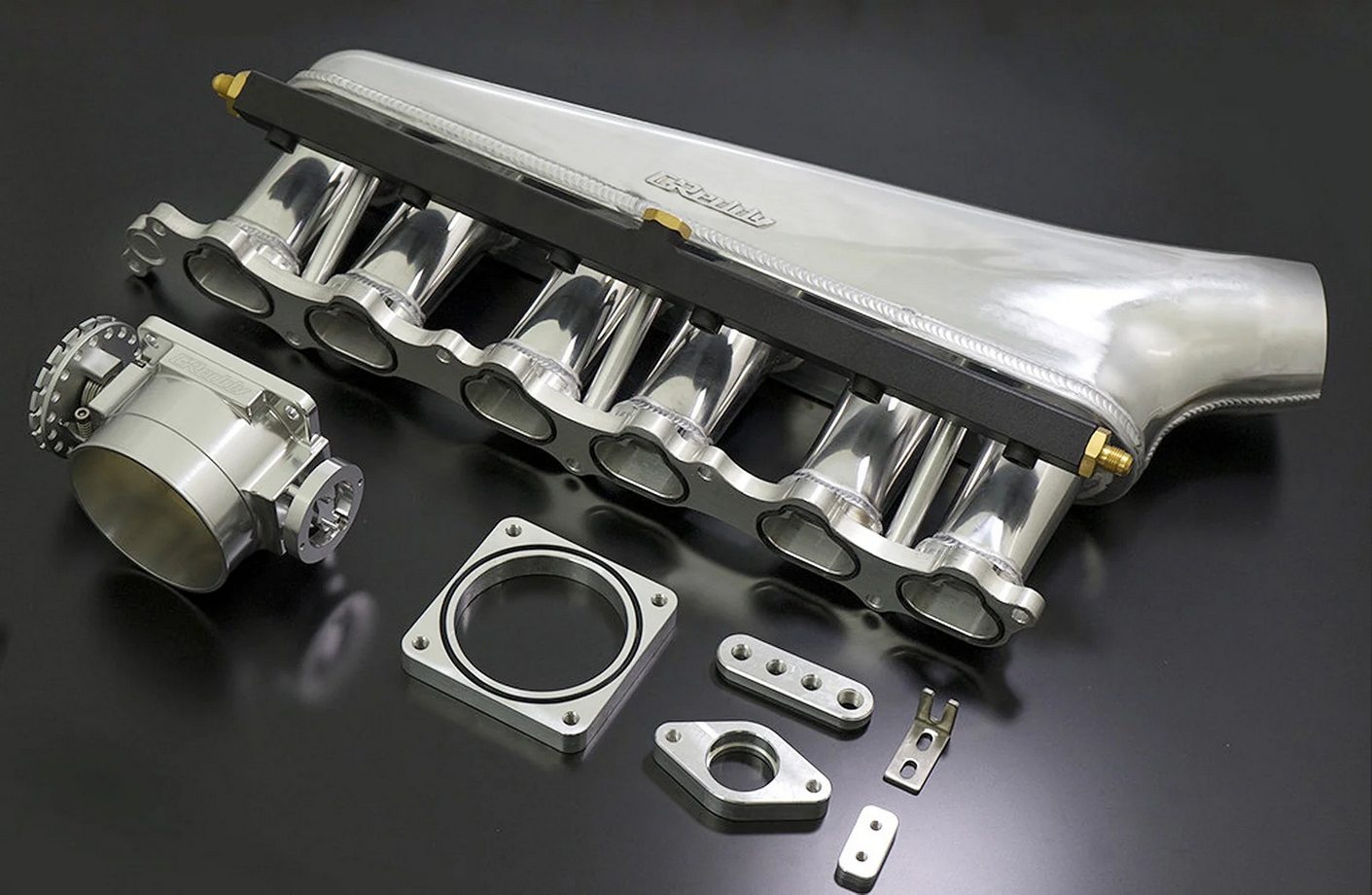

GReddy Billet Air Intake Manifold with Throttle Body + Fuel Rail - 2JZ GTE

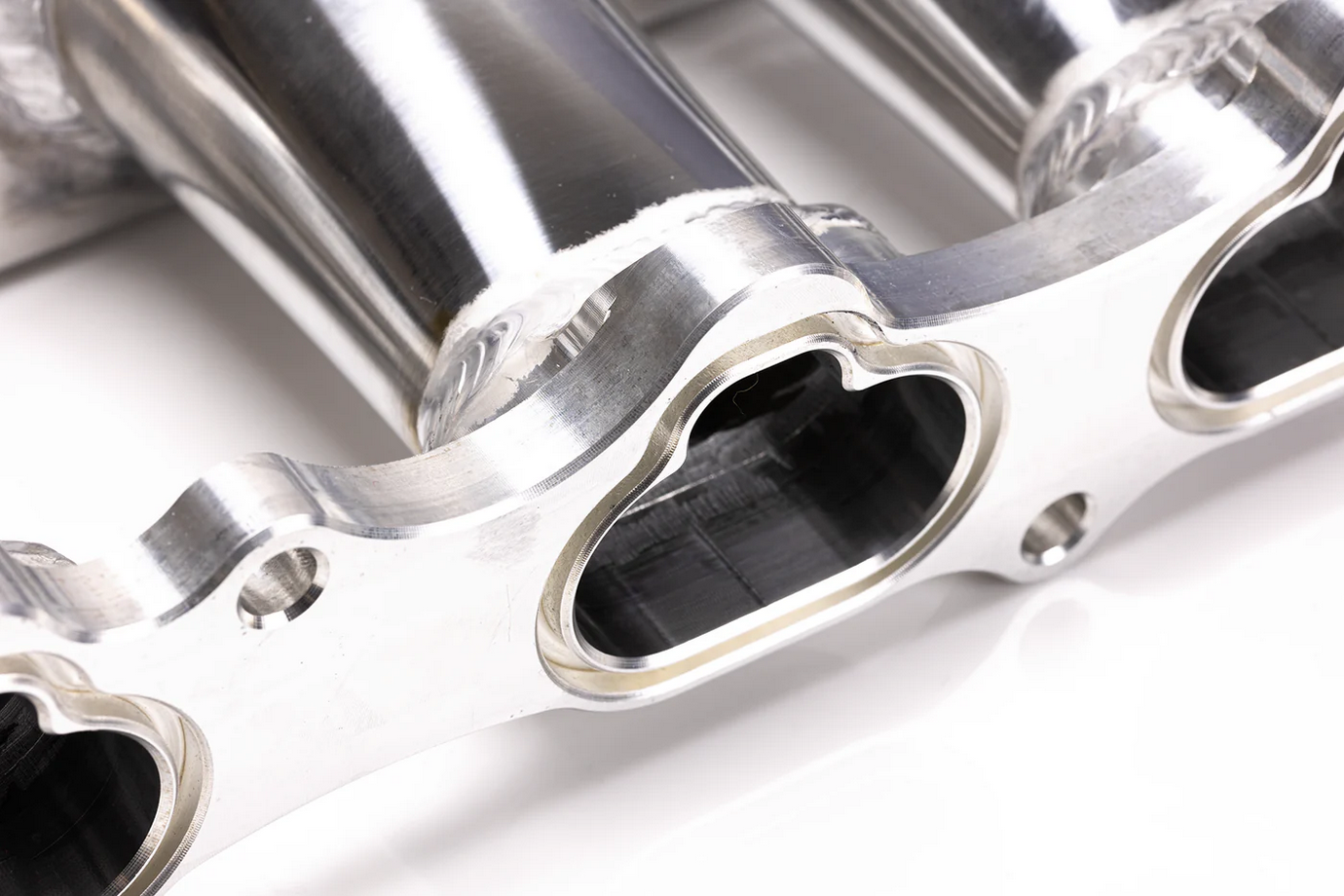

Designed specifically for custom applications with 2JZ engine transplants, the GReddy 2JZ Pro Surge Tank Kit offers the versatility to best match the throttle-body inlet angle and vacuum / air ports for your engine bay. This Pro kit includes 4.0l tank capacity with a large 90mm throttle-body, and top feed GReddy fuel rail, and necessary weld-on flanges. For additional rigidity during high boost applications, it uses thick 3mm formed metal tank that is welded to a precision machined, grooved base, with six individual, internal velocity-stacks. Also pre-welded are the tuned primary runners and CNC machined, intake manifold flange with fuel injector ports. Another key feature is the unique, purpose-built fuel-resist, ring-type gaskets that seal the manifold to the head.

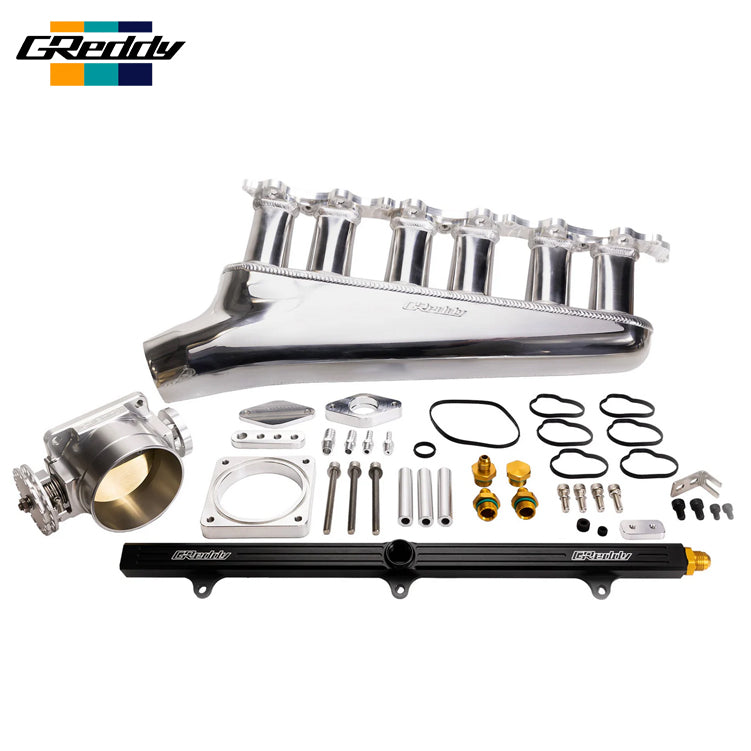

2JZ Pro Surge Tank Kit includes : SURGE TANK / THROTTLE BODY / THROTTLE FLANGE / FUEL DELIVERY TUBE & MOUNTS

Collector tank capacity 4.02 l (normal ratio 200%)
Welding required to attach throttle body flange, throttle cable mount and air-port flanges
Surge tank, base plate and runners pre-welded
Tuned internal velocity stacks on each runner
Primary runner length 13.0mm, OD 14.0mm, ID 13.0mm

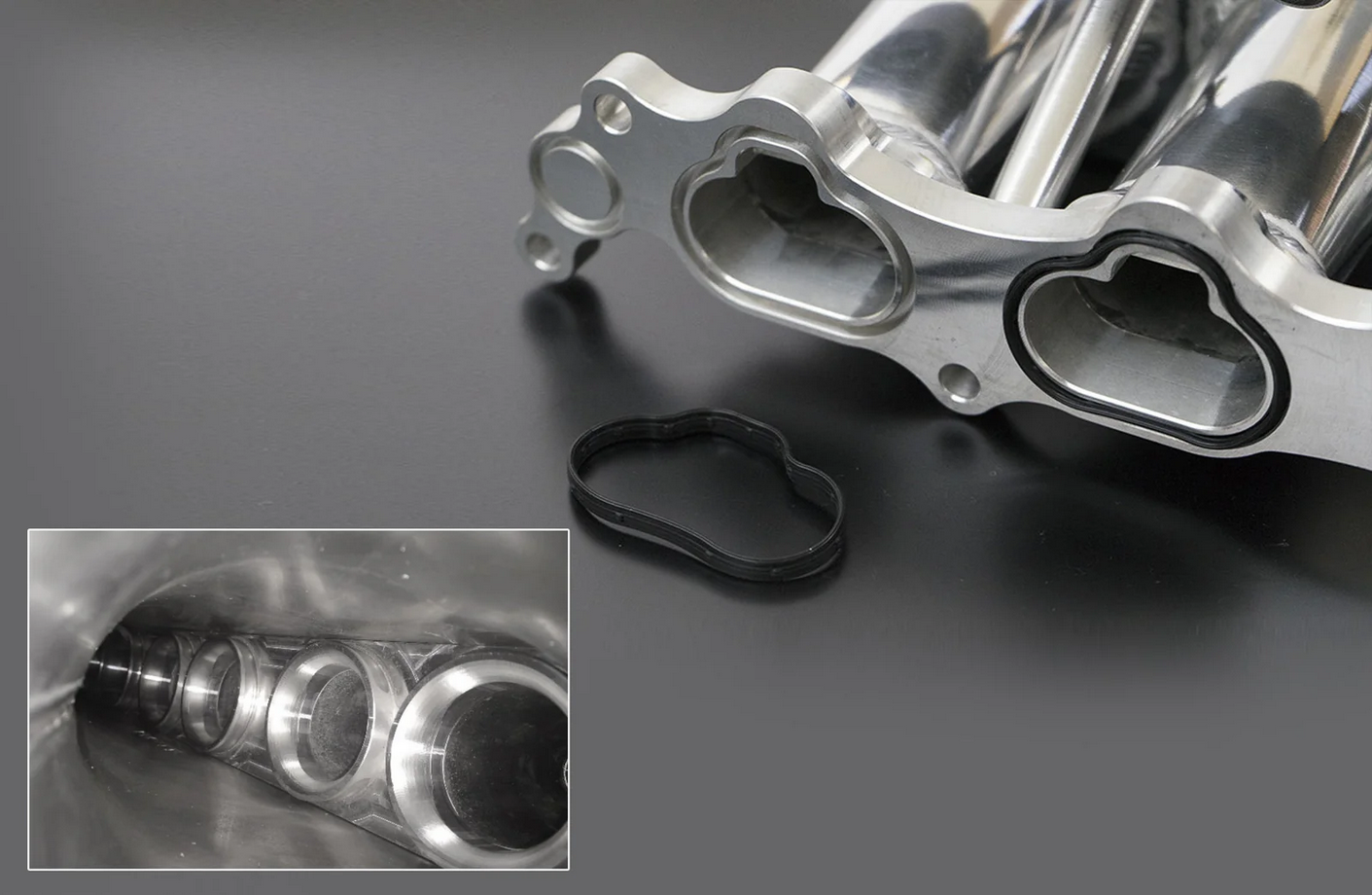

Specially designed and manufactured O-ring style gasket provide superior manifold to head sealing for each runner

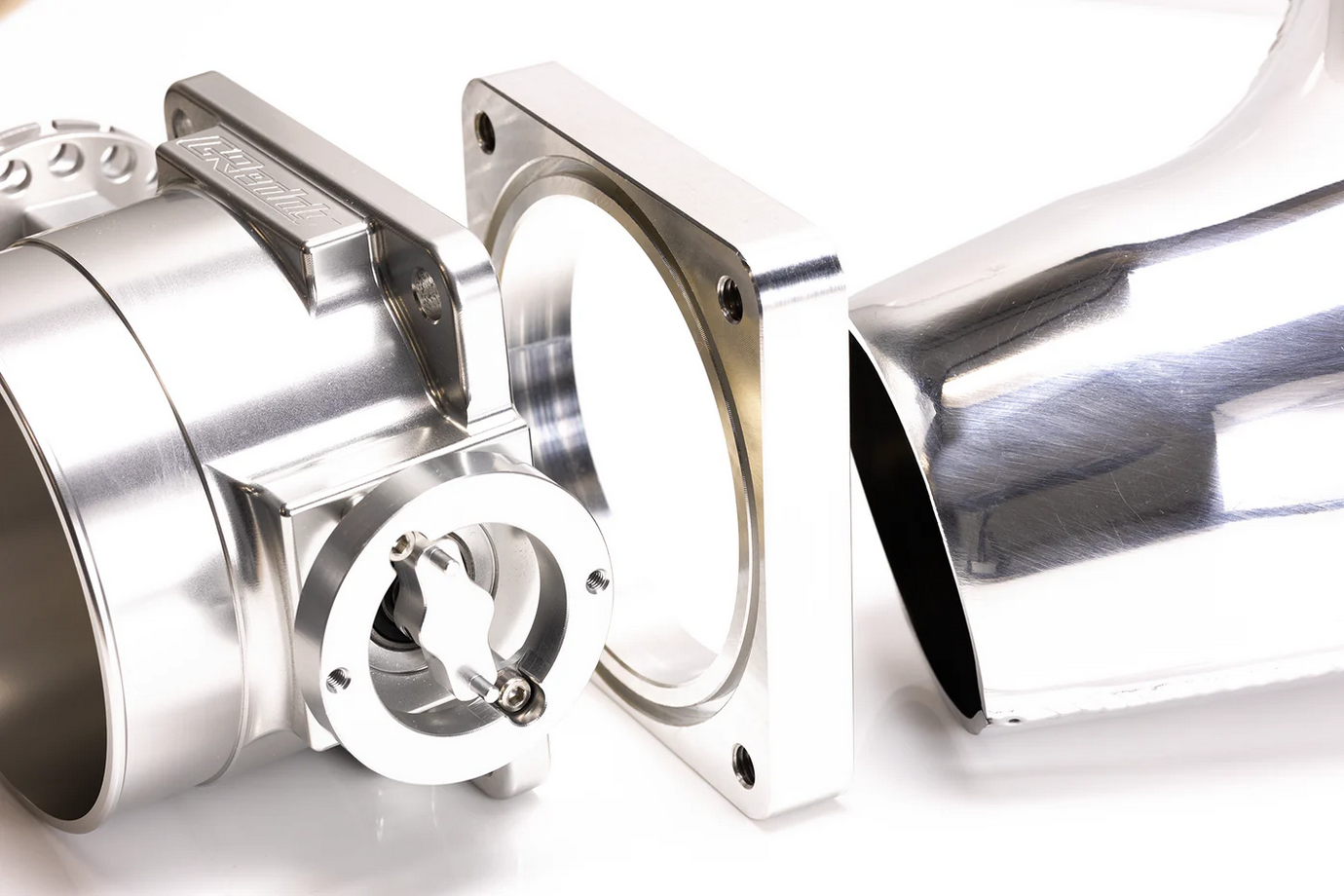

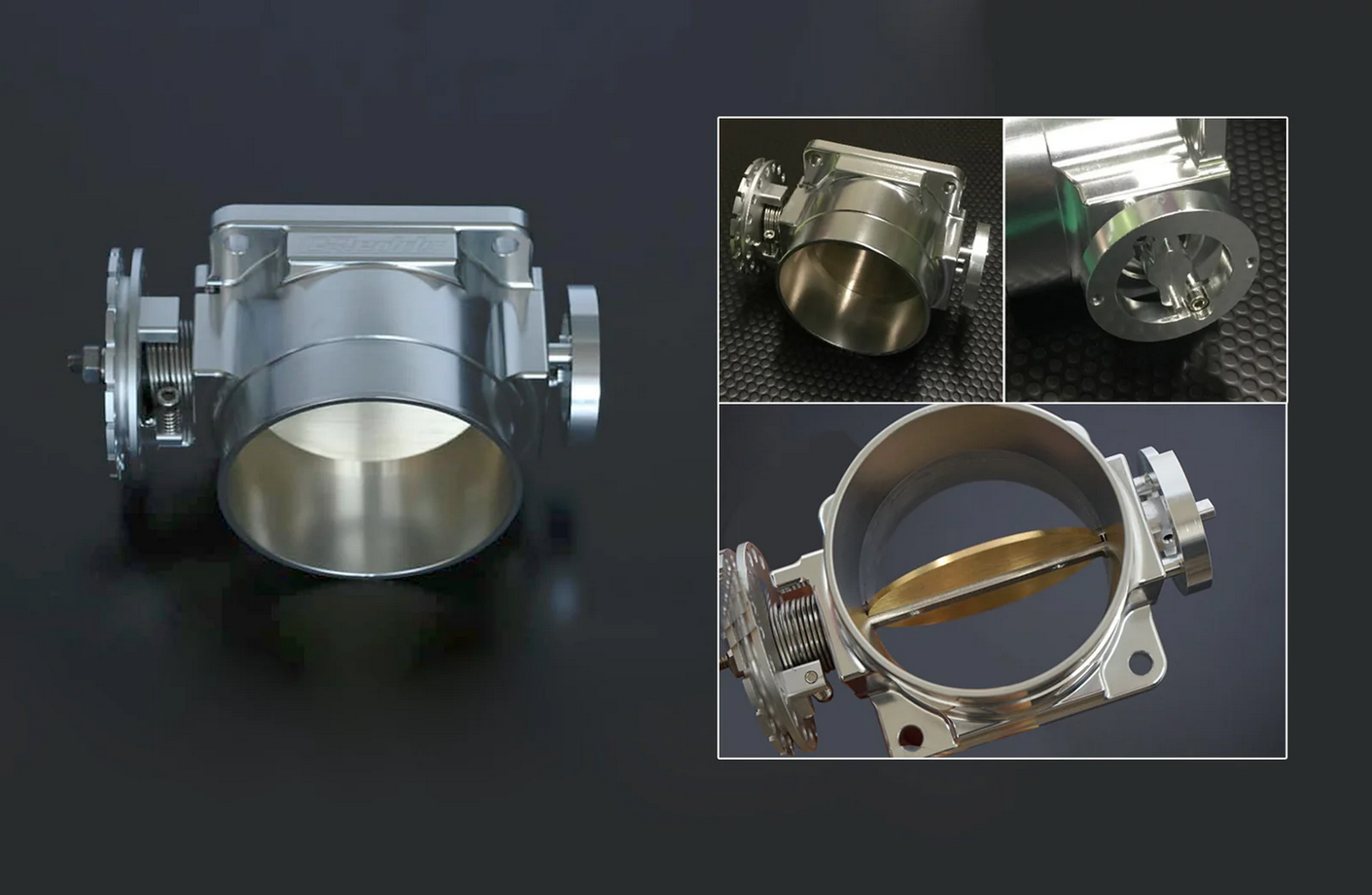

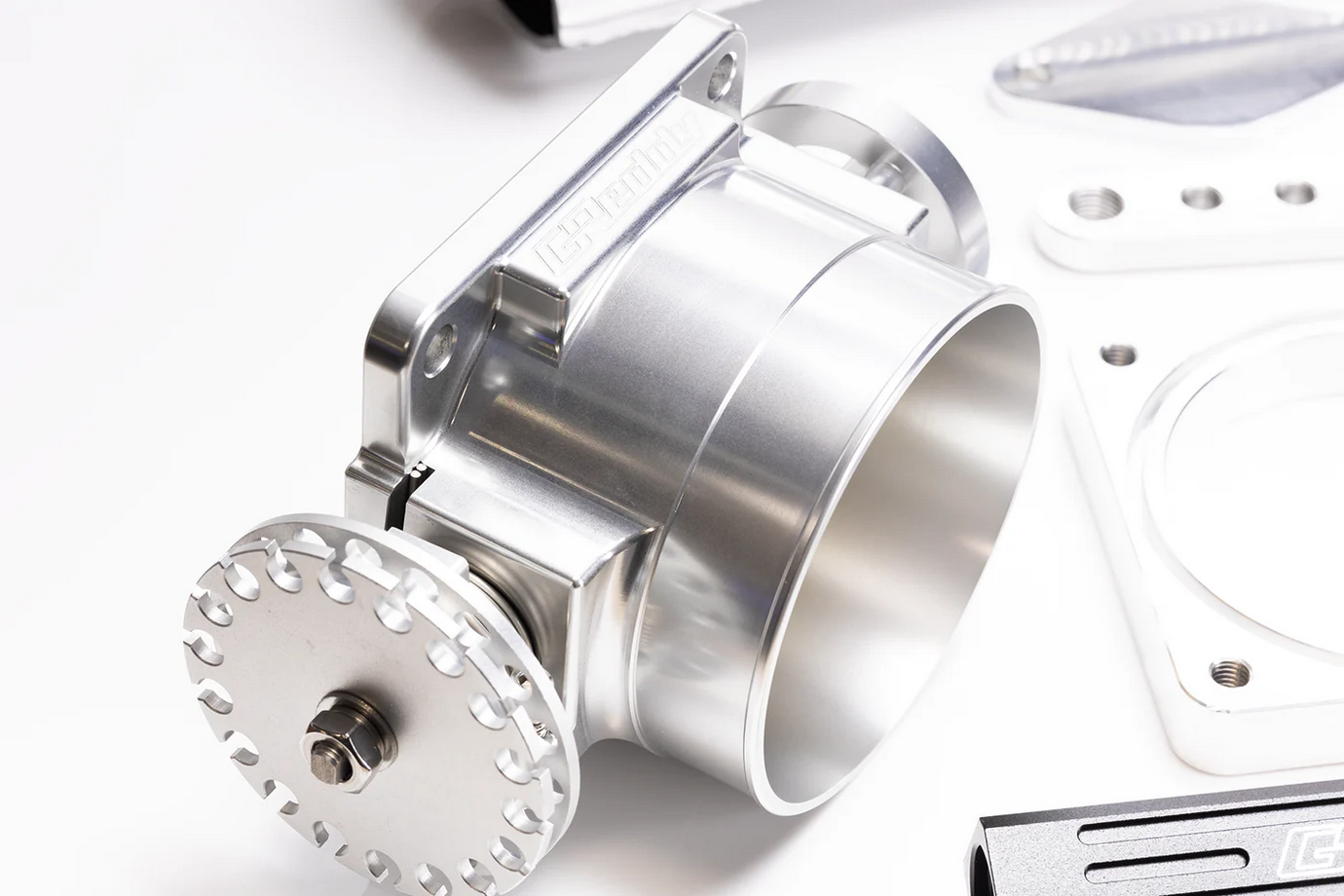

Throttle-body hose diameter 100mm, internal butterfly diameter 90mm with low-profile throttle shaft

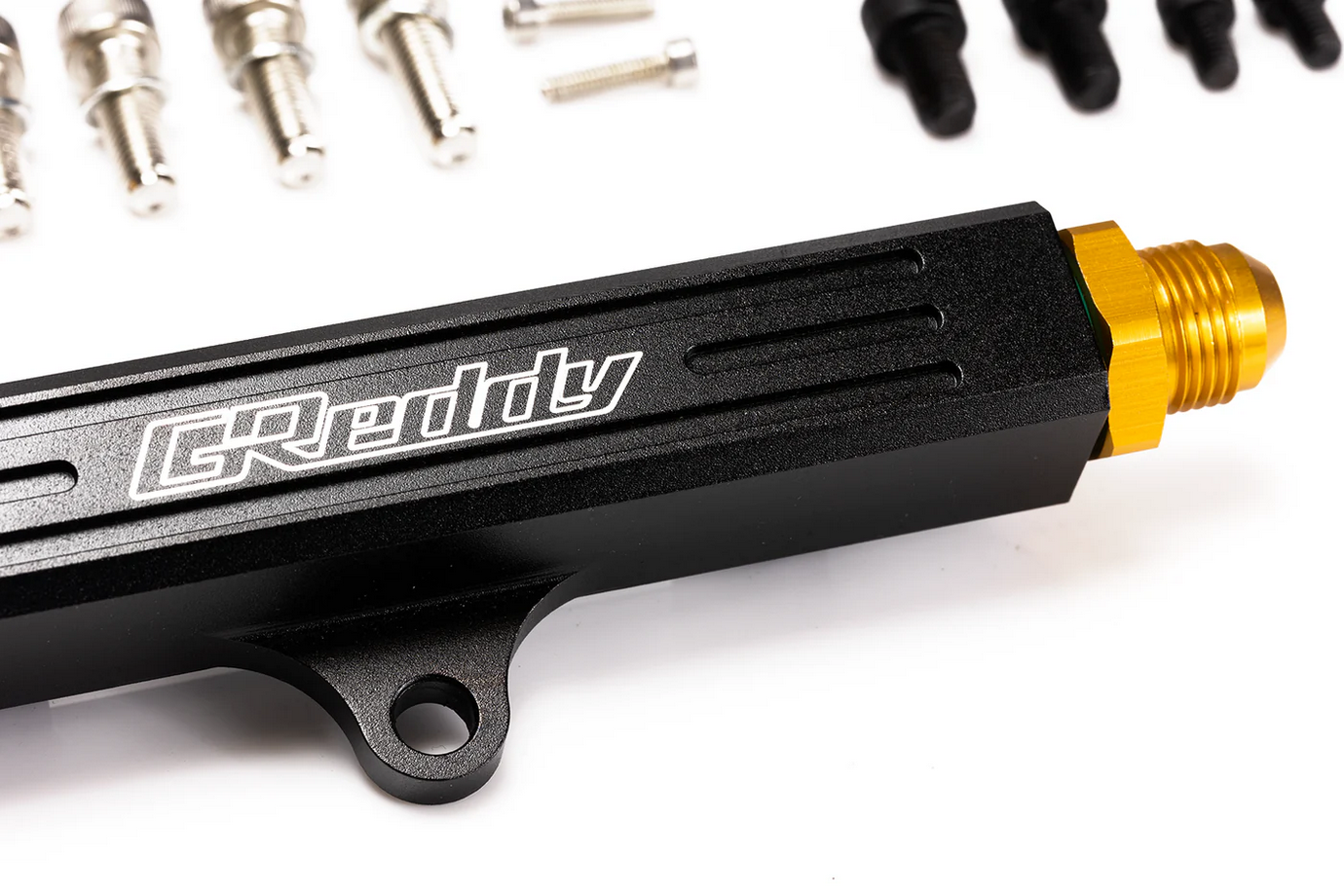

* Fuel Delivery tube for 14mm top feed injector (compatible with Nissan R35 VR38DETT factory injectors)
Compatible with OEM factory Idler Control Valve and TPS Throttle Position Sensor
