HKS 2JZ GTE Forged Piston Kit - 87.0mm Bore
HKS 2JZ GTE Forged Piston Kit - 87.0mm Bore
Regular price
$1,757.50
Regular price
$1,850.00
Sale price
$1,757.50
Unit price
per
SKU:HKS21003-AT002
Couldn't load pickup availability
■Feature

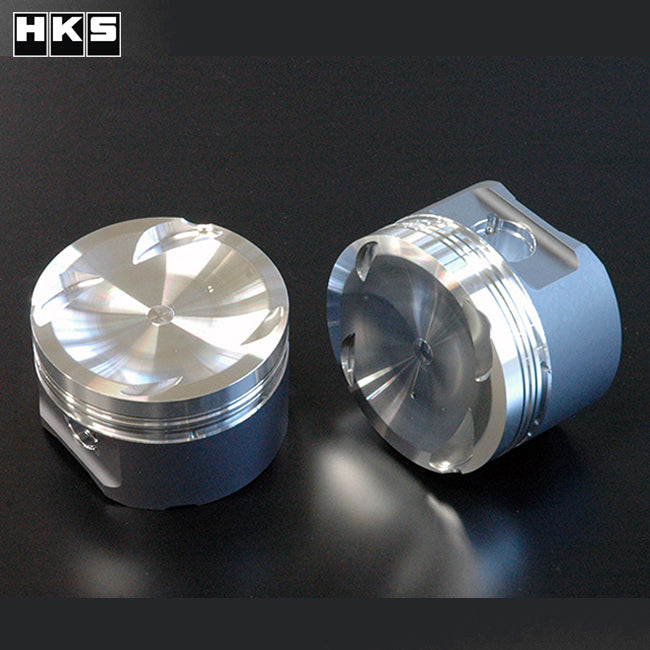

- Newly designed Forged Piston Kit for 2JZ-GTE.
- It has recess that is applicable for VVT-i engines. (It is also applicable for HKS V CAM.)

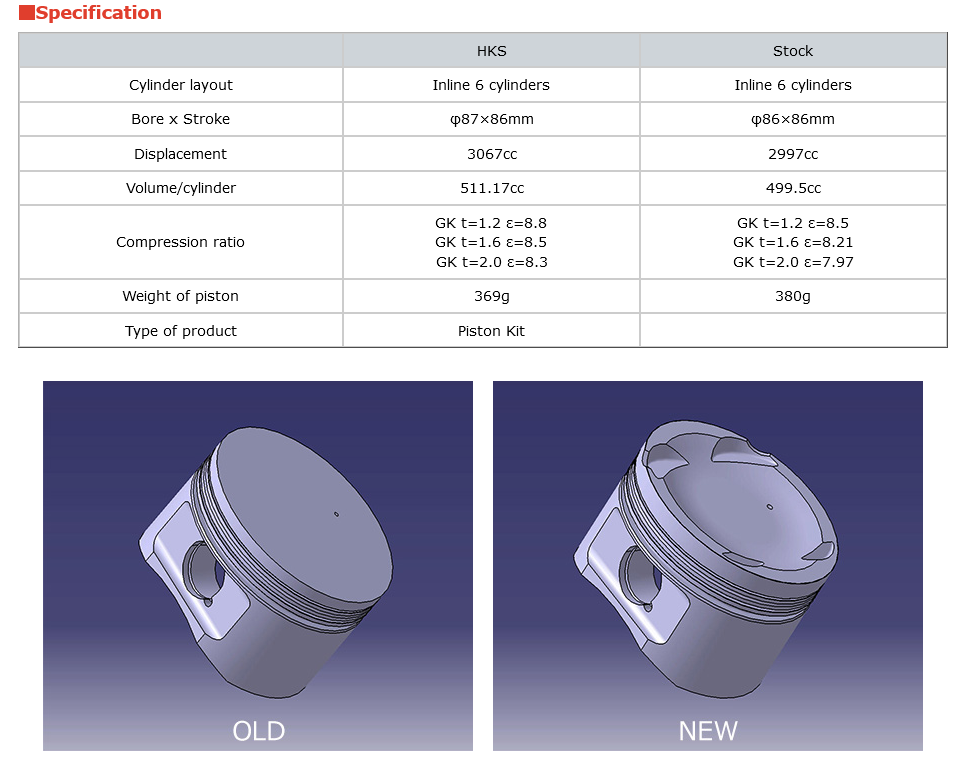

- The new design has not flat top but concave shape like other ordinary turbo pistons with valve recess for VVT-i.
- Compression ratio can be set for latest high compression turbos: 8.8 (t=1.2), 8.5 (t=1.6), 8.3 (t=2.0).
- Piston skirt portion has "Ober coating" for initial smooth braking-in and reduction of friction.
- It has been tested on a engine bench at 600PS/8000rpm.
| Engine | Type | Displacement (mm) | Size | Boring・Honing |
Full flow |
Compression |
Remarks |
|---|---|---|---|---|---|---|---|
| 2JZ-GTE | Forging Piston Kit | 3067 | φ87 - φ22 | Required | Not required | GK t=1.2 ε=8.8/GK t=1.6 ε=8.5/GK t=2.0 ε=8.3 | Compatible with VVT-i models |
