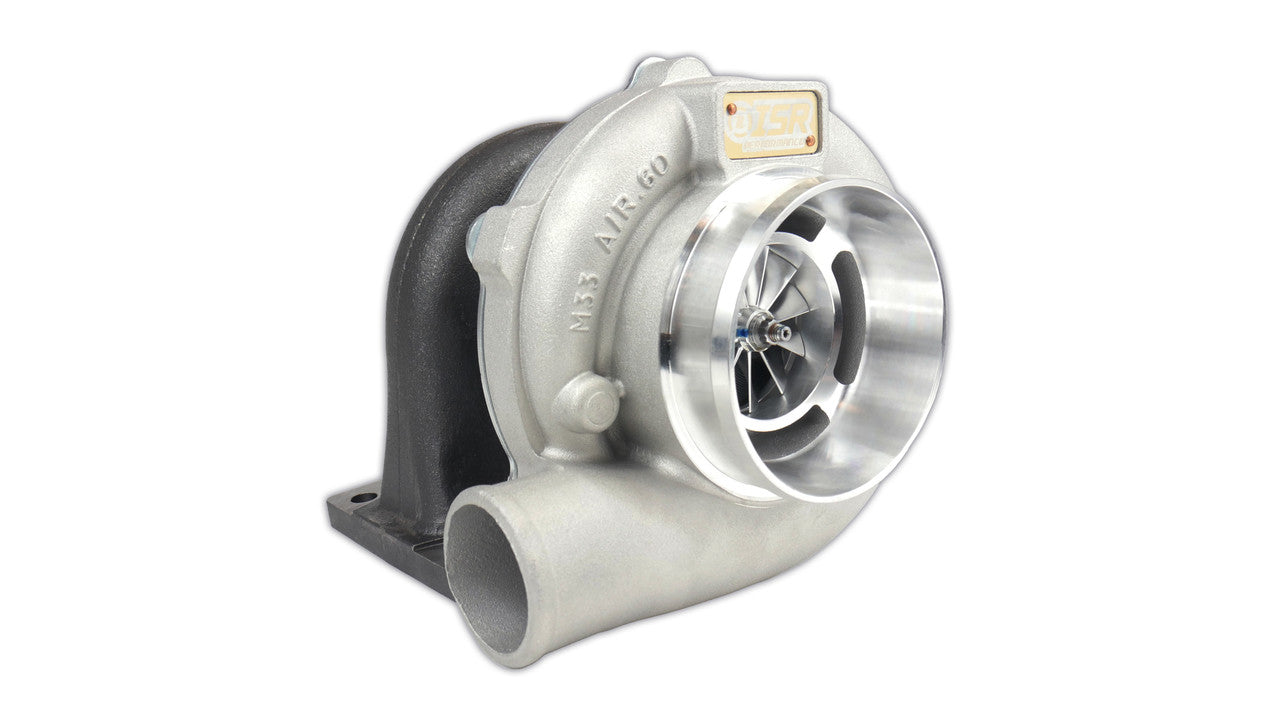

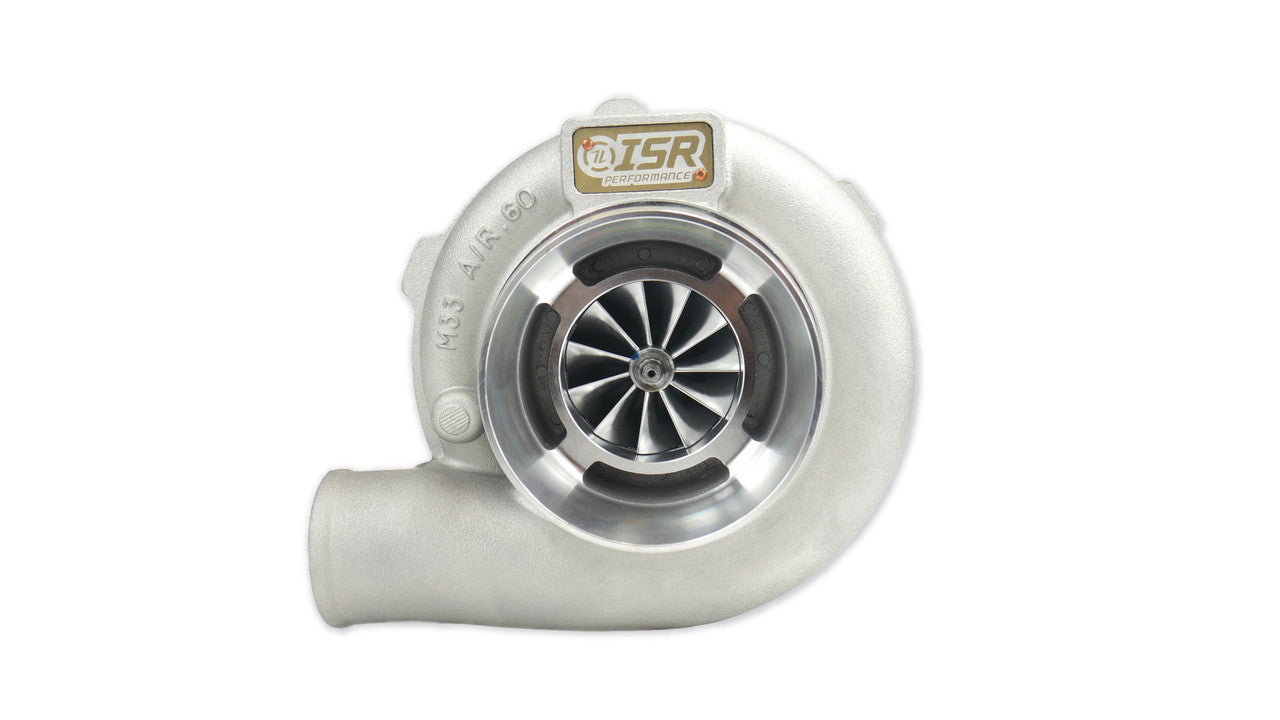

ISR Performance RSX3576 Turbo w/ .82 AR V-Band Turbine Housing

ISR has released their new larger frame turbo upgrade options for those looking for top mounted turbos on their SR / KA / RB / JZ engines

The RSX3576 turbo feature dual ball bearing, billet compressor wheel and ported shroud compressor housings. All ISR turbos feature dual step gap rings and are balanced to within OEM specifications. Get big power and reliability and a fraction of the cost.

Turbo Specifications:

Dual Ball Bearing
REQUIRES OIL RESTRICTOR .036”-.040” (part # IS-OR-3036)

Oil Feed Thread: 7/16-24
Oil Drain Size: GT style (part # IS-GTDRN)

Wheel Specs:
Comp: IND 58mm, EXD 76mm
Turbine: IND 68mm, EXD 62mm

Compressor Housing: .60AR
Inlet: 4.0"
Outlet: 2.0"

Turbine housing: T3 .82
Turbine Discharge Flange: 90mm Vband
Flange part # (IS-FLA-090MM)
Clamp part # (IS-CL-090MM)
