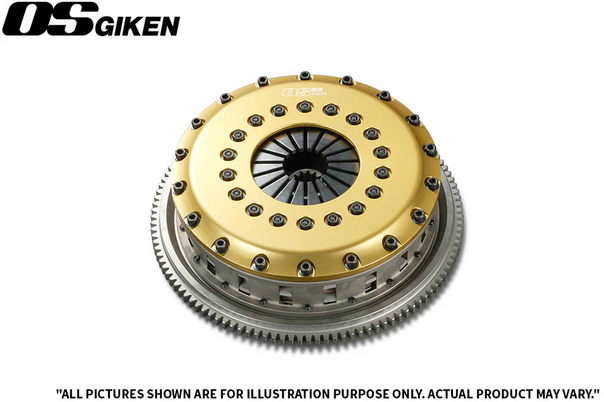

OS Giken TR Dampened Twin Plate Clutch for Nissan S13 / S14 SR20DET

Fitment:
- Nissan Silvia - SR20DET

Included Components:
- Twin Plate Clutch Assembly with Flywheel

Installation Notes:
- Requires NS001-016K
- Please consult installation guide
- Requires OEM Pilot Bearing or Bushing

The TR2CD Twin Plate Clutch series line-up was designed for vehicles which have substantial increases in engine power. The billet aluminum cover provides a more direct clutch pedal feel, but still maintains ease of engagement due to the unique leverage mechanism of the diaphragm spring to reduce overall pedal effort.

The TR2CD was designed with high power Turbocharged engines in mind. This type of clutch caters toward the heavily modified engines. The dampened hub clutch discs are 215mm in size and are good up to about 800lbs ft of torque reliably. The aluminum cover allows for higher clamping force (increased capacity) and will handle the hard abuse often found at the track.
